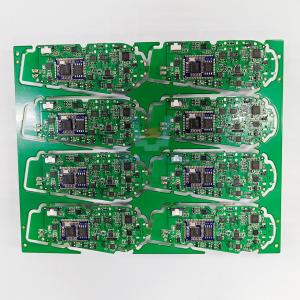

Highly Efficient Manufacturer Green Printed Circuit Board SMT PCB Assembly Electronic Communication Equipment
What equipment is used in SMT PCB Assembly?
In general, the following equipment is suitable for SMT assembly: tin printing press, patch machine, reflow furnace, AO (Automatic Optical Inspection) instrument, magnifying glass or microscope, etc.
SMT PCB Assembly Specification
| SMT Project name Item | KY PRO PCBA |
| Manufacturing process | SMT, AOI test,X-RAY,CNC panel,Functional Test |
| Material accuracy | 0402+QFN |
| Number of materials | 68 kinds |
| Material consumption | 185 pcs |
| PCB process | Immerison Gold |
| Number of PCB layers | 6 layers |
| PCB Surface | Double-Sided Boards |
| Material | FR-4 |
| Board thickness | 1.0 mm |
| Manufacturing quality system | IATF16949 |
| PCB quality system | ROHS/UL |
| Application Field | Bluetooth headset helmet, Bluetooth intercom helmet, cycling electronic communication equipment |
SMT PCB Assembly Manufacturer
SMT (surface mount technology) PCB assembly is an advanced technology used in the manufacturing of printed circuit boards (PCBs). It is a highly efficient manufacturing process that uses in Bluetooth headset helmet, Bluetooth intercom helmet, cycling electronic communication equipment to create a highly reliable and accurate product. As a leading SMT PCB assembly manufacturer, we provide a variety of services for custom circuit boards. Our services include board thickness customization, minimum silkscreen clearance of 0.1mm, surface finish options such as HASL, ENIG, and OSP, minimum hole distance of 0.2mm, and board size customization.
Our experienced team of engineers and technicians are well-equipped with the latest tools and equipment to ensure the highest level of quality and precision. We strive to provide our customers with the best possible service and offer the most competitive prices in the industry. If you’re looking for a reliable SMT PCB assembly manufacturer, look no further than us.
SMT PCB Assembly Inspection Necessity
In order to ensure the quality and performance of the assembled PCB, it is very necessary to check during the entire SMT assembly process. Multiple types of inspections must be used to reveal manufacturing defects, which can reduce the reliability of the final product.
Visual inspection is most commonly used in SMT patch assembly. As a direct inspection method, visual inspection can be used to indicate obvious physical errors, such as component displacement, missing components, or component irregularity.
Visual inspection is not suitable for visual inspection. Tools such as a magnifying glass or microscope can also be used. In order to further point out the defects occurring in the welding ball, AOI and X-ray inspection can be used after the completion of coal bonding
